Choosing a Red Dot Magnifier: Why Fit Decides It, Not Glass

Magnifiers get bought to solve one specific annoyance: past a certain distance the dot stops being an aiming point and becomes a lid. You can put it on the thing, but you cannot see the thing. What sinks the purchase is almost never the glass: it is that the magnifier arrives, goes on the rail behind the sight, and the two do not line up — a mounting problem you could have predicted from the specifications.

Height matching: the check to do before you order

A magnifier is a fixed tube with one optical axis at one height above the rail. Your sight has one too. If they disagree by more than a little, you look through and see the wall of the tube with the dot crowded into what is left — or, if the mismatch is bad enough, tube and no dot. Windage and elevation on the magnifier will not rescue it: those shift the image, not the axis of the tube.

So the figure you need is your sight's optical centre height above the rail, which mount specifications usually state. The SIG ROMEO5 Gen II Elite ships on a 1.41 in (36 mm) absolute co-witness mount. Lower-1/3 co-witness — the other common rifle height, used by the bases on EOTech's hybrid systems — sits higher again; co-witnessing a red dot with iron sights explains the terms.

Then read what the magnifier's mount does about it. There are two approaches:

• Adjustable height. Holosun's magnifier mounts are specified with an adjustable co-witness height, so the HM3X, the titanium HM3XT and the HM6X come up or down to meet the sight. If you are buying for a sight you already own, that is the feature to pay for.

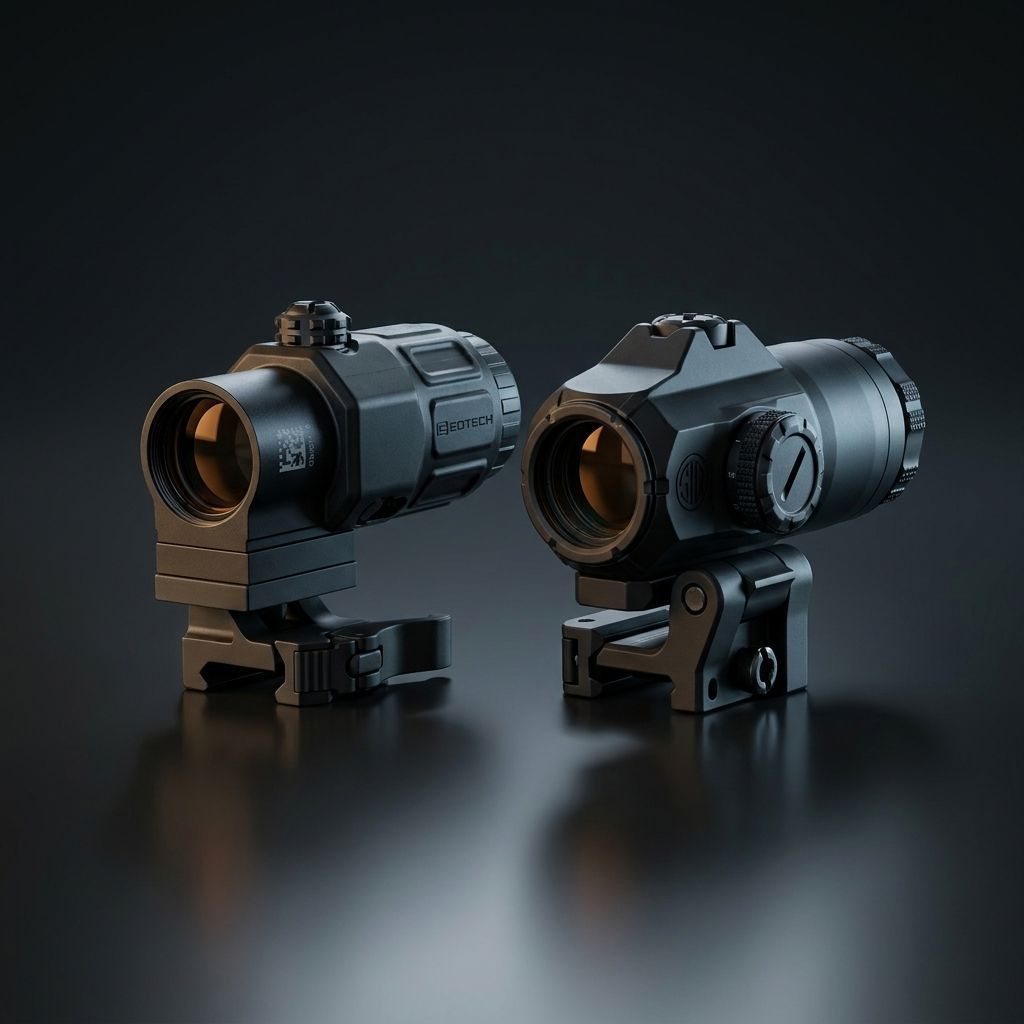

• Built to a house height. EOTech's Switch-to-Side magnifiers — G33, G43 and G45 — are specified to pair with EOTech holographic weapon sights and standard-height red dots. Behind an EOTech, solved. Behind an unusually low or tall mount, not.

The check takes five seconds: get behind the gun and look. The sight's window should sit centred in the tube, with a ring of tube visible evenly round it. Tube wall at the top or bottom means the heights disagree.

One trap. EOTech sells the same optics without a mount — the G33 No Mount and G43 No Mount are optic only, for people who already own a Switch-to-Side or Switch-to-Center mount. They are not a cheaper route in, and we do not carry magnifier mounts and risers at all, so you would source one elsewhere.

How much rail is actually behind your sight

Magnifiers need their own length of top rail, and short-railed guns run out. Measure from the back of your sight's mount to the end of the rail. The G43 is the short one at 3.1 in (79 mm), against 4.0 in (102 mm) for the G33 and 3.9 in (99 mm) for the 5x G45. The SIG JULIET4 is 4.2 in (107 mm); the JULIET3-Micro is specified as a body around 30% smaller than the full-size JULIET3.

Note what the G43 does not buy you: it is the shortest EOTech but the heaviest, at 11.3 oz (320 g) against the G33's 10.6 oz (301 g) and the G45's 12.8 oz (363 g). You are paying for rail space, not weight. If weight is the constraint, the titanium HM3XT is built for that argument.

Which side it flips to

These all stay on the rail and swing out of the sight line for 1x. But a hinge swings one way, and which way is a question about the shooter, not the gun. Convention is to swing it away from your firing hand and head, so a right-handed shooter flips left. EOTech's Switch-to-Side mounts are explicitly ambidextrous and set up either way — the cleanest answer if you shoot left-handed or share the gun. Other mounts do not publish a direction in the store data, so confirm before ordering. It matters in practical shooting, where a magnifier on the wrong side fouls the barricade you are leaning on.

What you actually see through it

The naked dot has effectively unlimited eye relief and no eye box worth the name. A magnifier takes that away: fixed eye relief, a real exit pupil, and outside that cone a black crescent.

The SIG JULIET exit pupil figures show why. The 3x JULIET3 has an 8 mm exit pupil, the 4x JULIET4 6 mm, the 6x JULIET6 4 mm — all three quoted at 65 mm of eye relief. Eye relief is not what changes as power goes up; the tolerance on where your eye sits is. That is why a 6x feels fussy from an unsupported position and a 3x does not.

3x, 4x, 5x or 6x

3x is the common answer: it adds reach while keeping enough field of view to work with both eyes open. Going further is a trade, not an upgrade. Figures below are published specifications for the models we carry; where one is not, it says so.

Read the field of view column as the price list. The JULIET3's 8° down to the JULIET6's 4° halves what you can see, and the HM6X's 3.7° is narrower still — fine for identifying something at the far edge of a red dot's range from a settled position, unhelpful for finding it fast. The JULIET4 also comes in Flat Dark Earth and the G-series in Tan, with the rest of our FDE and tan optics.

Your dot size sets the ceiling

Here is the part people get backwards. A magnifier enlarges dot and target by the same factor, so a 2 MOA dot seen through a 3x still covers 2 MOA of target. Magnification buys no extra precision. It buys the ability to see what you are aiming at — and because the field of view has shrunk, the dot fills a larger share of what you can see.

So dot size and magnifier choice are one decision. A 2 MOA rifle dot like the ROMEO5 Gen II, or a circle-dot with the fine 1 MOA centre EOTech uses, stays usable at 3x and above. A 6 MOA dot chosen for speed on a handgun — the HS407COMP is that kind of optic — becomes a blob filling a narrow field, and you have magnified away the detail you were buying. Pairing a large pistol-style dot with a magnifier is usually a mistake; what MOA means on a red dot sight covers the sizes.

This is rifle and carbine equipment: nothing sensible runs behind a slide- or frame-mounted pistol optic, so there the answer is a better dot — see pistol dot sight vs rifle dot sight.

Where this lands for UK shooting

Airsoft. On a woodland site the case is identification, not accuracy: whether the figure in the treeline is on your team. 3x is plenty, and its wider field of view keeps you tracking movement. Airsoft guns are not firearms under the Firearms Act 1968: section 57A, inserted by the Policing and Crime Act 2017, defines one as a barrelled weapon designed to discharge only a small plastic missile and not capable of exceeding the permitted muzzle energy — 1.3 joules for a weapon capable of discharging two or more missiles successively without repeated pressure on the trigger, 2.5 joules otherwise. Watch the weight: a 12.8 oz (363 g) G45 changes how a light replica handles, and equipment rules are the site's own.

Sub-12 ft lb air rifle. The Guide on firearms licensing law sets the exempt air weapon thresholds at 12 ft lb for an air rifle and 6 ft lb for an air pistol (s.2.46). In Scotland, section 2 of the Air Weapons and Licensing (Scotland) Act 2015 makes it an offence to use, possess, purchase or acquire an air weapon without an air weapon certificate issued by Police Scotland (s.2.52), and Northern Ireland has its own firearms legislation (s.4.5). A dot with a flip-in 3x suits a sub-12 rifle where you want speed close in and enough magnification to confirm a target further out. Field target and hunter field target classes set their own equipment rules, so confirm with your club or organiser before building a magnified rig for competition.

Practical and tactical. Here the flip mechanism earns its keep and handedness stops being a detail. If a stage mixes close targets with something at the far end, a 3x on an ambidextrous mount is worth carrying. If everything is close, it is ballast.

Certificate-held rifles. Whether a particular rifle and its setup sit within your certificate conditions is a matter for your police firearms licensing department; Northern Ireland has its own firearms legislation. Confirm with them, not a retailer.

The version where the height problem is already solved

If that reads as a lot of measuring, buy sight and magnifier as a matched pair. Everything in our red dot and magnifier combos is a pairing the manufacturer has already made work at a common height, with both mounts in the box.

EOTech's hybrid systems are the clearest case: the HHS II puts an EXPS2-2 and the G33 on a quick-detach lower-1/3 co-witness base, and a tan HHS VIII alongside it. Holosun does the same with the HS510C and HM3X and the ARO-EVO SPR and HM3X. SIG boxes the ROMEO5 Gen II with the JULIET3-Micro for short rails, steps to 5x with the ROMEO5XDR and JULIET5-Micro, and pairs the ROMEO8T-AMR with the JULIET3T-AMR.

Buying separately still wins when you already own a sight you like — that is what the standalone magnifier range is for. If the sight is undecided, start with red dot versus holographic sight.

Five things to settle before you order

1. Your sight's optical centre height, and whether the mount is adjustable or fixed.
2. The clear rail behind the sight, measured, against the magnifier's length.
3. Which side the hinge swings, and whether that is away from your firing hand.
4. Your dot size, and whether it survives being enlarged.
5. Whether you need more than 3x, given what the field of view costs.
